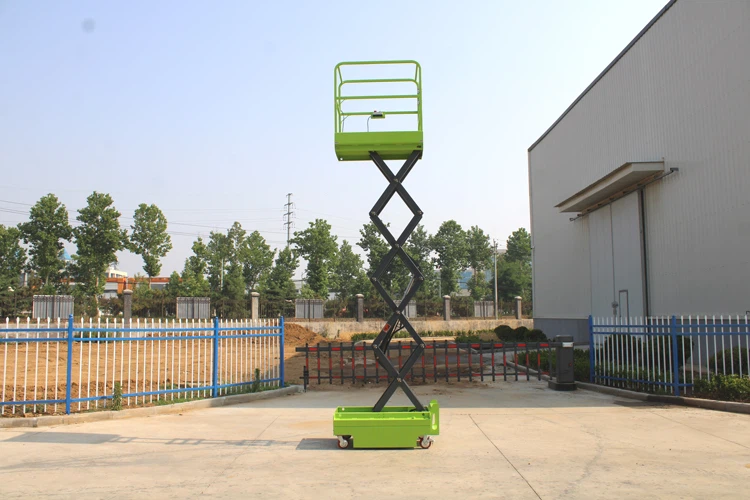

Home Scissor Lift for Sale – Compact and Flexible Aerial Work Expert | 240kg Load Capacity | 3m/3.9m Dual Height Options
This Home Scissor Lift is designed for efficient operation in tight spaces combining lightweight structure with powerful performance making Home Scissor Lift an ideal choice for warehouse maintenance equipment installation and indoor decoration.
Core Product Advantages
✅Dual Working Heights Choose between 3m and 39m maximum platform heights to suit various job requirements
✅ High Load Capacity 240kg platform load capacity provides stable support for tools and operators ensuring safety and efficiency
✅ Compact and Portable Design Overall dimensions of just 132m (L) × 076m (W) with a 10m wheelbase allowing easy navigation through narrow passages and standard doorways
✅ Efficient Power System
● 0.8kw lifting motor (12V) ensures smooth operation (34s ascent 20-25s descent)
● 100Ah high-capacity battery (12V) paired with a 12A charger delivers long-lasting performance and convenient charging
✅ Lightweight Structure Net weight of 482kg (3m model)/516kg (39m model) enhances mobility and reduces ground pressure
Key Technical Specifications
✅ Platform Size 115×060m providing a stable workspace for single-person operation (max occupants 1)
✅ Tire Configuration 6-inch/8-inch tires suitable for various ground conditions
✅ Ground Clearance 50mm balancing stability and maneuverability
Ideal Applications
Warehousing and logistics (shelf maintenance inventory management)
01
Shopping malls/exhibitions (lighting installation advertising setup)
02
Industrial plants (equipment maintenance pipeline installation)
03
Construction and decoration (ceiling wall construction)
04
Why Choose Our Mini Scissor Lift ?
Safe and Reliable Complies with aerial working industry standards featuring a sturdy structure and simple&smart operation
Cost-Effective Semi-electric design balances performance and cost while reducing energy consumption
Easy Maintenance Modular design allows quick access to key components
Video Display
Home Scissor Lift Models and Parameters
|
DATA |
MMSL3.0 |
MMSL3.9 |
|
Loading Capacity |
240kg |
240kg |
|
Max. Platform Height |
3m |
3.9m |
|
Overall Length |
1.32m |
1.32m |
|
Overall Width |
0.76m |
0.76m |
|
Overall Height |
1.83m |
1.92m |
|
Platform Dimension |
1.15×0.60m |
1.15×0.60m |
|
Wheel Base |
1.0m |
1.0m |
|
Occupants |
1 |
1 |
|
Ground Clearance |
0.05m |
0.05m |
|
Up/Down Speed |
34/20sec |
34/25sec |
|
Tyre |
6in/8in |
6in/8in |
|
Lifting Motor |
12v/0.8kw |
12v/0.8kw |
|
Battery |
12v/100Ah |
12v/100Ah |
|
Charger |
12v/12A |
12v/12A |
|
Weight |
482kg |
516kg |
Main Parts of Home Scissor Lift
Bottom Control Panel
Bottom control panel design with power button and emergency stop which make people can 100% guarantee the safe of worker who is working on top platform. Battery indicator and button control up down is also here.
Top Platform Control Panel
The upper control of our scissor lift can control the rise and fall. It is also equipped with an emergency stop switch and an anti-accidental touch switch.
Wheel equip with brake
We designed mechanical brakes on the wheels to ensure that home scissor lift remains stationary when parked.
Manual Emergency Descent Switch
We have designed a manual emergency descent ring in a conspicuous position. When the equipment fails and cannot be lowered, the emergency descent ring can be used to lower the mini scissor lift.
