Qingdao DAXLIFTER Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of crawler boom lift in China. With abundant experience, we warmly welcome you to buy advanced crawler boom lift for sale here from our factory. Quality products and reasonable price are available.

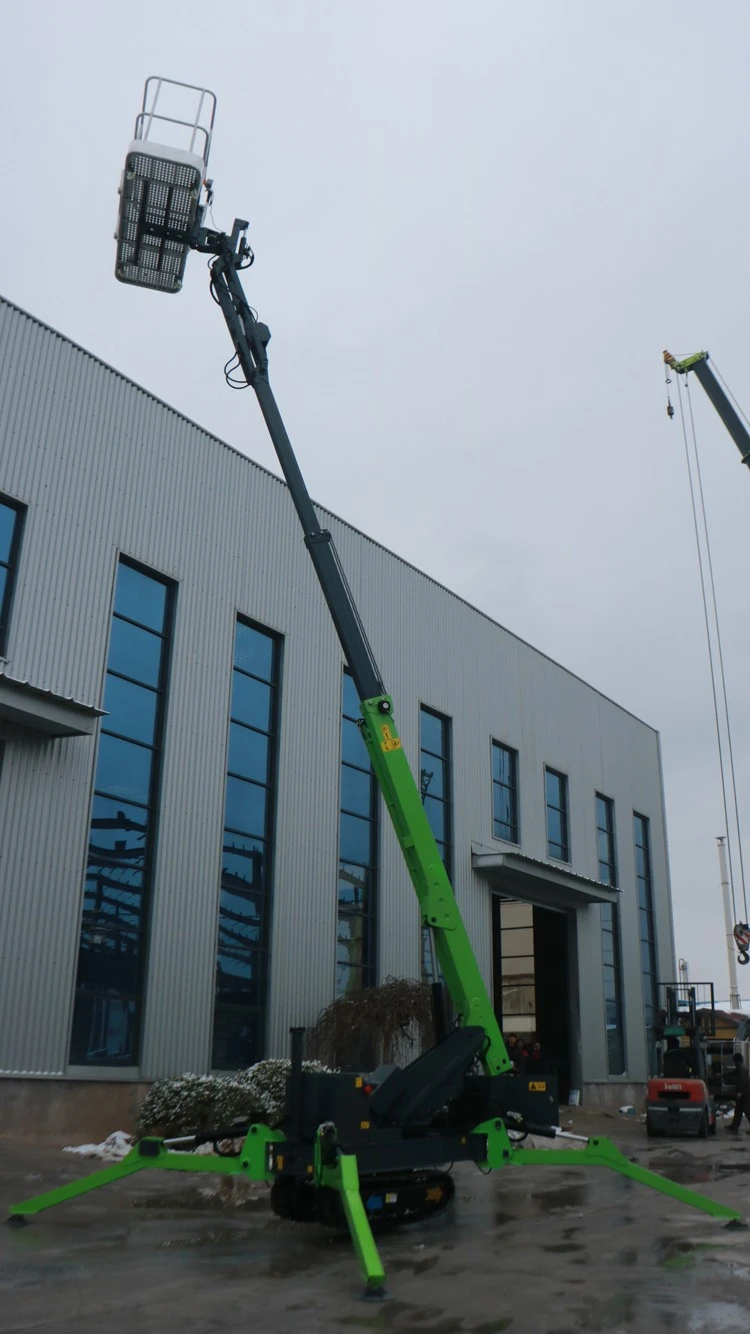

Crawler boom lifts are available in seven models, with platform heights ranging from 8 to 19 meters. Crawler boom lift feature durable rubber tracks, enabling them to handle various terrains, including uneven surfaces, soft grass, and muddy ground. Thanks to their good terrain adaptability and suitability for diverse work environments, they have become an indispensable part of the boom lift product line.

Crawler boom lifts are designed with environmental protection in mind, powered by zero-emission standard battery systems. They are equipped with 48V/230Ah or 48V/300Ah lithium iron phosphate (LFP) batteries, ensuring long-lasting performance. To extend operational time, a gasoline engine generator can be optionally added to reduce downtime and prolong machine runtime.

With their slim chassis design, these crawler-type aerial work platforms can easily pass through gates, courtyards, standard doorways, and even public buildings. This makes them a versatile solution for a wide range of indoor and outdoor applications.

Ultra-Compact Mobility Design:

Full-series body width ≤ 0.95m (DXBL-14C/DXBL-16C: 0.95m, other models: 0.75m), allowing passage through standard doorframes

Folded height of 1.9-2.1m, suitable for indoor elevator transport (DXBL-08C folded height: only 1.9m)

Crawler-type travel system with ground pressure <35kPa, ensuring zero damage to lawns or tiled floors

25% gradeability, adaptable to slopes such as underground parking garages

Intelligent Power System:

Dual-power configuration (48V lithium battery + gasoline range extender), extending runtime by 300%

Industry-leading energy efficiency: DXBL-08C consumes only 15 kWh over 8 hours of operation

Smart power distribution: Automatically adjusts hydraulic pump and travel motor power output

Modular battery design with hot-swappable replacement (DXBL-16C features a high-capacity 48V/300Ah battery)

Innovative Structure and Functional Design

Composite Boom System:

Three-stage operation: Lower boom luffing (0-70°) → telescopic boom extension → fly boom adjustment (±70°)

Constructed with BS700MC high-strength steel, yield strength ≥700MPa

Asymmetric cross-section design, improving resistance to lateral winds up to Level 8 (17.2m/s)

Dual-cylinder synchronous drive, achieving extension speeds of 0.3m/s (DXBL-16C model)

Intelligent Control Platform:

±80° rotating aluminum alloy platform, supporting 200kg load (2 workers + tools)

Hydraulic isometric closed-loop leveling system, tilt compensation response time <0.5 seconds

Quick-release interface design, allowing attachment swaps (e.g., cleaning baskets or tool platforms)

Compliant with EN280 Class 3 standards, fall protection coefficient of 1.5

Full Redundancy Safety System:

Dual CAN bus architecture, 100% signal transmission redundancy

8 active protections: Including tilt warning, overload restriction, etc.

12 passive protections: Mechanical limits, hydraulic locks, etc.

Three-level emergency modes: Electric pump retraction → manual pump retraction → mechanical release

Core Technical Components

Hydraulic System:

American HYDRAFORCE proportional valve blocks, flow control accuracy ±2%

Load-sensing pump (DXBL-16C equipped with 7.5kW), energy-saving up to 40%

Italian ZAPI drive controller, enabling stepless travel speed adjustment

Electrical System:

Dual ECU architecture, fault self-diagnosis covering over 95% of issues

Remote monitoring interface supporting 4G data transmission

Curtis battery management system, remaining runtime prediction error <5%

Structural Craftsmanship:

Robotic welding for boom arms, 100% UT inspection pass rate

Ultrasonic spraying on outrigger pin surfaces, improving wear resistance by 8x

German Igus drag chains, bending lifespan exceeding 5 million cycles

Video Display

Technical Specifications

Model	DXBL-08C	DXBL-10C	DXBL-12C	DXBL-14C	DXBL-16C	DXBL-18C	DXBL-19C
Measurements
Max. Working height	10m	12m	14m	16m	18m	20	21m
Max. Platform height	8m	10m	12m	14m	16m	18	19m
Max. Operating radius	5m	5.5m	6.2m	6.2m	7.1m	8.2 m	8.5m
Platform Dimensions(LWH)	0.9×0.7×1.1m	0.9×0.7×1.1m	0.9×0.7×1.1m	1.2×0.7×1.1m	1.2×0.7×1.1m	1.2×0.7×1.1m	1.2×0.7×1.1m
Length(stowed)	4.9m	4.6m	5.2m	5.2m	5.3m	5.5m	5.35m
Width(stowed)	0.75m	0.75m	0.75m	0.95m	0.95m	0.95m	0.95m
Height(stowed)	1.9m	1.9m	1.9m	2.1m	2.1m	2.1m	2.1m
Outrigger Footprint Length	3.3m	3.6m	3.8m	4m	4m	4.2m	4.2m
Outrigger Footprint Width	3.3m	3.6m	3.8m	4m	4m	4.2m	4.2m
Jib rotation	±70°	±70°	±70°	±70°	±70°	±70°	±70°
Platform rotation	±80°	±80°	±80°	±80°	±80°	±80°	±80°
Turntable rotation	360°non continuous	360°non continuous	360°non continuous	360°non continuous	360°non continuous	360°non continuous	360°non continuous
Weight	1720kg	1790kg	1880 kg	1900kg	2200kg	2520kg	2750kg
Productivity
Lift capacity	200kg	200kg	200kg	200kg	200kg	200kg	200kg
Platform occupancy	2	2	2	2	2	2	2
Driving speed	1.5km/h	1.5km/h	1.5km/h	1.5km/h	1.5km/h	1.5km/h	1.5km/h
Drive gradeability	25%	25%	25%	25%	25%	25%	25%
Max. Working angle	10°	10°	10°	10°	10°	10°	10°
Power
Electric Motor	48V/4.5kw	48V/4.5kw	48V/6kw	48V/6kw	48V/7.5kw	48V/7.5kw	48V/8kw
LFP Battery	48V/230Ah	48V/230Ah	448V/230Ah	48V/300Ah	48V/300Ah	48V/300Ah	48V/300Ah
Control Voltage	12V	12V	12V	12V	12V	12V	12V
