Qingdao DAXLIFTER Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of compact articulating boom lift in China. With abundant experience, we warmly welcome you to buy advanced compact articulating boom lift for sale here from our factory. Quality products and reasonable price are available.

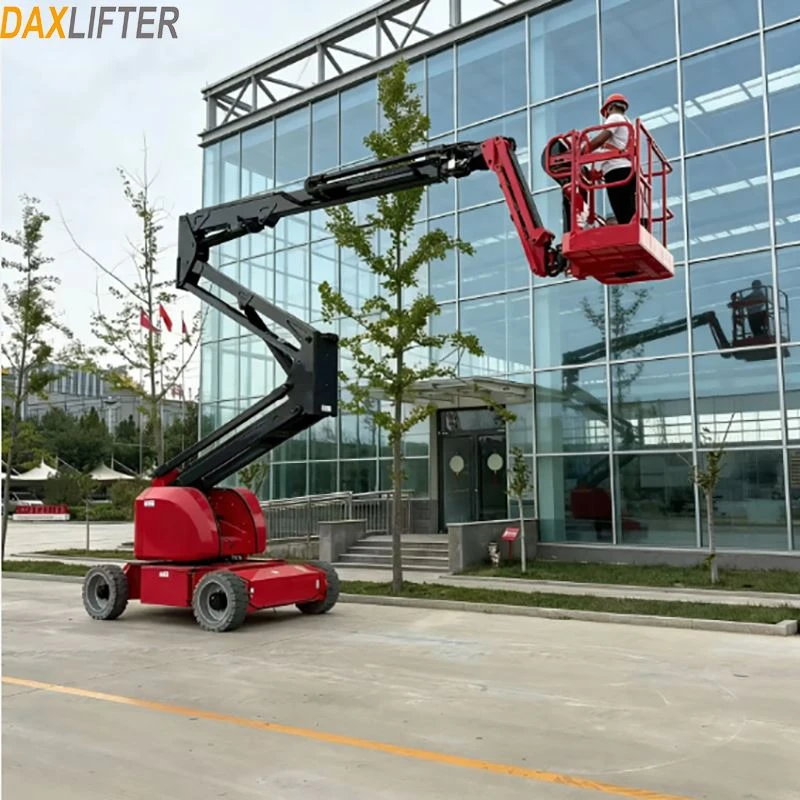

DAXLIFTER DX Series Electric Self Propelled Articulated Boom Lift
DAXLIFTER DX series electric self-propelled articulated boom lift offers 6 models DX09, DX11, DX14, DX16, DX18, DX20 with max working height from 11.3m to 22.5m, max platform height ranges 9.3m~20.5m, max up and over clearance 4.2m~9.4m and max working radius 5.8m~11.8m. The platform dimension covers 1.4*0.7m,1.4*0.76m and 1.8*0.76m, stowed length from 5.2m to 8.99m, width 1.27m~2.49m, stowed height 2.0m~2.38m, wheelbase 1.75m~2.5m, center ground clearance 0.14m~0.3m. For productivity, max lift capacity is 200kg,230kg or optional 350kg, holds 2 or up to 3 operators, platform rotation ±80°, jib rotation ±70°, turntable rotation 355° or continuous 360°. The stowed drive speed ranges 4.5~5.1km/h, gradeability 30%~45%, max working tilt angle 3°, outer turning radius 3.2m~5.0m, drive mode 2×2 or 4×2, machine weight 5200kg~10000kg. Power system adopts 48V 320Ah / 48V 420Ah battery, 4kw or 12kw pump motor, 3.3kw drive motor, 24V control voltage, optional LFP lithium battery and solid non-marking tires. This battery-powered articulating manlift works quietly without exhaust emission, ideal for indoor warehouse maintenance, shopping mall renovation, hotel facility repair, exhibition hall setup and outdoor building upkeep, narrow-space aerial access jobs.
This self-propelled electric cherry picker adopts flexible multi-section folding boom structure, which can bypass obstacles easily to reach overhead working spots that scissor lifts cannot access. Full electric drive design reduces operation cost and environmental pollution, suitable for low-emission construction zones and indoor enclosed working environments. Equipped with tilt protection sensor, overload protection system and emergency lowering function, the aerial work platform meets global safety standards for man lifting operations.
Multiple optional configurations are available to match different site requirements: long-life LFP lithium battery for longer continuous working time, solid non-marking tires to protect epoxy floors inside factories and supermarkets. DAXLIFTER provides full after-sales support, spare parts supply and technical guidance for all DX series articulated boom lifts, supporting bulk export for rental companies, engineering contractors and facility management enterprises worldwide.
Core Technical Specifications
| Specifications | DX09 | DX11 | DX14 | DX16 | DX18 | DX20 |
|---|---|---|---|---|---|---|
| Max. Working height | 11.3m | 12.52m | 15.8m | 17.7m | 20.2m | 22.5m |
| Max. Platform height | 9.3m | 10.52m | 13.8m | 15.7m | 18.2m | 20.5m |
| Max. up and over clearance | 4.2m | 4.65m | 7.0m | 7.3m | 8.0m | 9.4m |
| Max. Working radius | 5.8m | 6.5m | 7.5m | 8.9m | 11.1m | 11.8m |
| (L*W)Platform dimensions | 1.4*0.7m | 1.4*0.7m | 1.4*0.76m | 1.4*0.76m | 1.8*0.76m | 1.8*0.76m |
| Length-stowed | 5.2m | 5.6m | 6.5m | 7.2m | 8.49m | 8.99m |
| Width | 1.27m | 1.50m | 1.76m | 1.9m | 2.49m | 2.49m |
| Height-stowed | 2.0m | 2.0m | 2.0m | 2.0m | 2.38m | 2.38m |
| Wheelbase | 1.75m | 1.95m | 2.0m | 2.0m | 2.5m | 2.5m |
| Ground clearance-center | 0.14m | 0.14m | 0.25m | 0.25m | 0.3m | 0.3m |
| Max. Lift capacity | 200kg | 200kg | 230kg | 230kg | 230kg/350kg | 230kg/350kg |
| Number of Platform Occupants | 2 | 2 | 2 | 2 | 2/3 | 2/3 |
| Platform rotation | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° |
| Jib rotation | ±70° | ±70° | ±70° | ±70° | ±70° | ±70° |
| Turntable rotation | 355° | 355° | 355° | 355° | 360° continuous | 360° continuous |
| Drive speed-stowed | 4.8km/h | 4.8km/h | 5.1km/h | 5.0km/h | 4.8km/h | 4.5km/h |
| Gradeability-stowed | 35% | 35% | 30% | 30% | 45% | 40% |
| Max. Working angle | 3° | 3° | 3° | 3° | 3° | 3° |
| Turning radius-outside | 3.3m | 4.08m | 3.2m | 3.45m | 5.0m | 5.0m |
| Drive and steer | 2×2 | 2×2 | 2×2 | 2×2 | 4×2 | 4×2 |
| Weight | 5710kg | 5200kg | 5960kg | 6630kg | 9100kg | 10000kg |
| Battery | 48V/320Ah | 48V/320Ah | 48V/320Ah | 48V/320Ah | 48V/420Ah | 48V/420Ah |
| Pump motor | 4kw | 4kw | 4kw | 4kw | 12kw | 12kw |
| Drive motor | 3.3kw | 3.3kw | 3.3kw | 3.3kw | 3.3kw | 3.3kw |
| Control voltage | 24V | 24V | 24V | 24V | 24V | 24V |
| Optional Parts | LFP battery, Solid non-marking tires | LFP battery, Solid non-marking tires | LFP battery, Solid non-marking tires | LFP battery, Solid non-marking tires | LFP battery, Solid non-marking tires | LFP battery, Solid non-marking tires |
Main Application Scenarios
- Indoor factory maintenance & high rack inspection
- Shopping mall, office and hotel renovation work
- Exhibition booth setup and stadium maintenance
- Facade cleaning, street lamp and air conditioner installation
- Low-emission indoor and outdoor aerial working projects
