Qingdao DAXLIFTER Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of trailer mounted cherry picker in China. With abundant experience, we warmly welcome you to buy advanced trailer mounted cherry picker for sale here from our factory. Quality products and reasonable price are available.

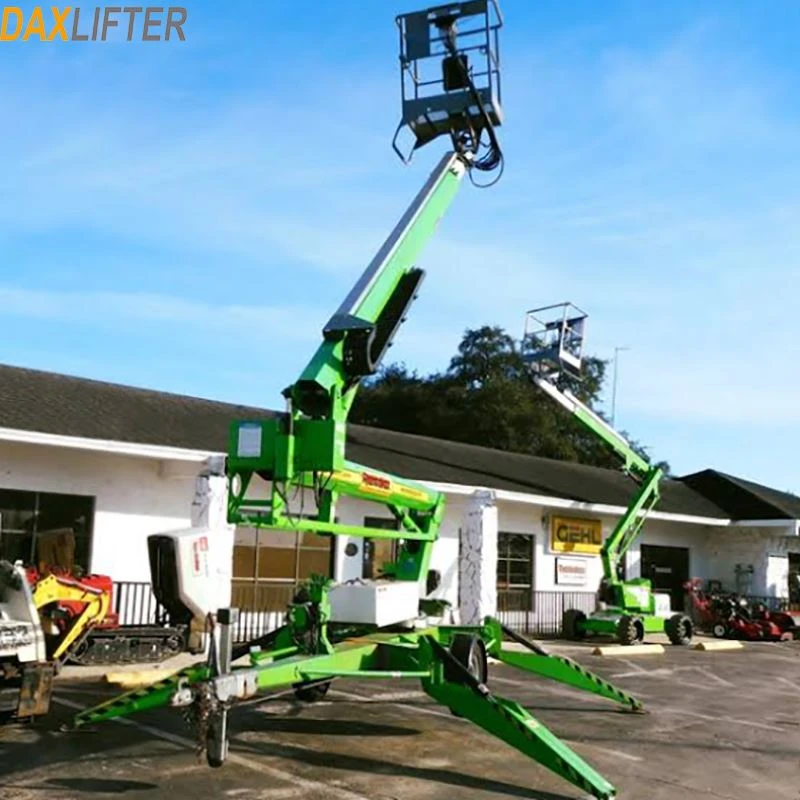

DAXLIFTER Towable Boom Lift / Trailer Mounted Cherry Picker
DAXLIFTER towable boom lift, also known as trailer mounted cherry picker, supplies working height from 12m to 22m, lifting height ranging from 10m to 20m with a 200kg rated load capacity. The platform dimension is 0.9*0.7m, all models support 360° continuous rotation, and different working radius covers 5.5m to 11m to fit diverse overhead working scenarios. Our trailer boom lift series includes DXBL-10, DXBL-12, DXBL-12(Telescopic), DXBL-14, DXBL-16, DXBL-18, DXBL-18A and DXBL-20.
This tow-behind aerial work platform is designed for easy towing by cars or trucks. The folded traction total length ranges from 4.7m to 6.5m, overall length 5.8m-7.6m, overall width 1.7m-1.9m and overall height 2.1m-2.25m. Stable outriggers guarantee high safety during operation. Container loading solution: 1 set per 20ft container, 2 sets per 40ft container for all models.
Our trailer mounted boom lift is widely used for building maintenance, tree trimming, billboard installation, warehouse overhead inspection, stadium maintenance and construction site aerial works. It can work on uneven ground with stable hydraulic outriggers. Flexible boom arm provides great reach to hard-to-access areas. Power options can be customized for different country requirements.
Technical Data
| Model | Lifting height | Working height | Load capacity | Platform size | Working radius | 360°Continue Rotation | Overall Length | Total length of traction folded | Overall width | Overall height | 20'/40' Container Loading Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DXBL-10 | 10m | 12m | 200kg | 0.9*0.7m | 5.5m | Yes | 6.3m | 5.2m | 1.7m | 2.1m | 20'/1set 40'/2sets |
| DXBL-12 | 12m | 14m | 200kg | 0.9*0.7m | 6.5m | Yes | 7.3m | 6.2m | 1.7m | 2.1m | 20'/1set 40'/2sets |
| DXBL-12 (Telescopic) | 12m | 14m | 200kg | 0.9*0.7m | 7.8m | Yes | 5.8m | 4.7m | 1.7m | 2.1m | 20'/1set 40'/2sets |
| DXBL-14 | 14m | 16m | 200kg | 0.9*0.7m | 8.5m | Yes | 6.65m | 5.55m | 1.7m | 2.1m | 20'/1set 40'/2sets |
| DXBL-16 | 16m | 18m | 200kg | 0.9*0.7m | 10.5m | Yes | 6.8m | 5.7m | 1.7m | 2.2m | 20'/1set 40'/2sets |
| DXBL-18 | 18m | 20m | 200kg | 0.9*0.7m | 11m | Yes | 7.6m | 6.5m | 1.8m | 2.25m | 20'/1set 40'/2sets |
| DXBL-18A | 18m | 20m | 200kg | 0.9*0.7m | 10.5m | Yes | 6.6m | 5.5m | 1.8m | 2.25m | 20'/1set 40'/2sets |
| DXBL-20 | 20m | 22m | 200kg | 0.9*0.7m | 11m | Yes | 6.9m | 5.8m | 1.9m | 2.25m | 20'/1set 40'/2sets |
Key Advantages
- 360° continuous rotation boom, flexible to reach multiple working angles
- Hydraulic stabilizer outriggers, strong stability for outdoor rough terrain
- Trailer-type design, easy to tow and transport between job sites
- Compact folded size, convenient for sea container shipment
- Simple operation control system, low maintenance cost
- Customizable power system: battery, diesel or electric power available
Application Fields
Outdoor building facade maintenance, street light repair, tree pruning, advertising hoisting installation, factory pipeline maintenance, exhibition hall setup, church & stadium renovation.
