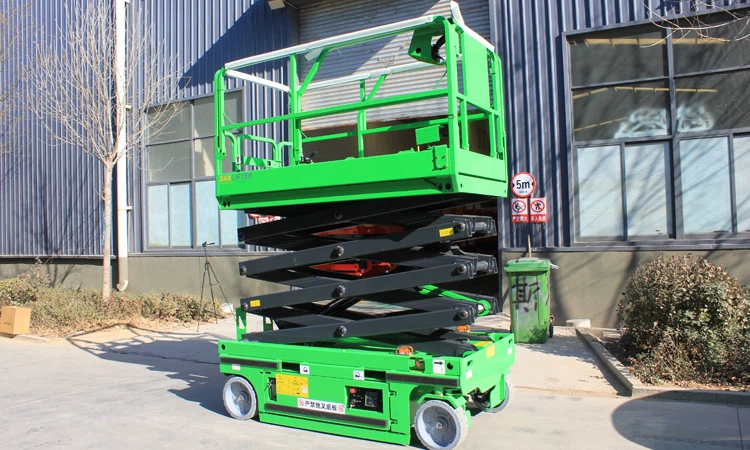

Scissor Man lift- Professional and Efficient Aerial Work Solution
The Scissor Man lift series is a professional aerial work platform offering a variety of working heights from 6 to 14 meters, with a maximum load capacity of 450 kg. This product line features high-quality manganese steel construction, a high-performance hydraulic system, and an intelligent control system. Scissor Man lift is characterized by easy operation, flexible mobility, and reliable safety, making it widely applicable in construction, factory maintenance, warehousing, logistics, and more.
Core Advantages
✅ Multiple Models Available – Offers 7 configurations from DX06 to DX14, with working heights of 6–15.8 meters.
✅ Exceptional Load Capacity – Maximum load of 450 kg, with an extension platform supporting an additional 110–113 kg.
✅ Compact and Flexible Design – Industry-leading minimum turning radius (inner wheel: 0 m), suitable for confined spaces.
✅ High-Efficiency Power System – 24V/4.5 kW motor, travel speed of 3.5 km/h.
✅ Comprehensive Safety Protection – Equipped with multiple safety systems, including automatic braking and emergency descent.
Key Features
✔ Quick-Extend Platform – Foot-operated extension platform rapidly expands to the work area.
✔ Superior Maneuverability – Industry-leading minimum turning radius (inner wheel: 0 m).
✔ High Climbing Ability – 25% gradeability, suitable for slope operations.
✔ Smart Maintenance Design – Rotating chassis for easy maintenance, with automatic fault code display.

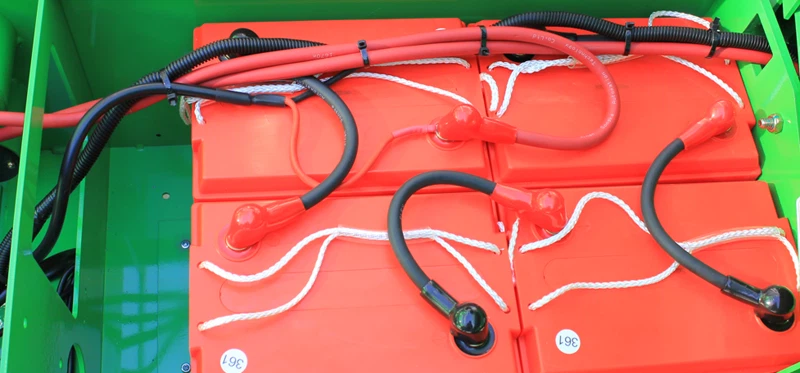

✔ Long-Lasting Battery – 4×6V/200Ah high-capacity battery pack.
Applications
✔ Construction – Exterior wall work, interior decoration.
✔ Factory Maintenance – Equipment inspection, production line servicing.
✔ Warehousing & Logistics – Shelf access, inventory management.
✔ Shopping Malls & Supermarkets – Light fixture replacement, advertisement installation.
After-Sales Service
✔ Warranty Commitment – 3 years for structural components, 2 years for other parts.
✔ Battery Guarantee – Free replacement within 2 years (non-human damage).
✔ Professional Support – Comprehensive technical support and maintenance services.
Video Display
Product Specifications
|
Model |
DX06 |
DX06(S) |
DX08 |
DX08(S) |
DX10 |
DX12 |
DX14 |
|
Lifting Capacity |
450 kg |
230 kg |
450 kg |
320 kg |
320 kg |
320 kg |
230 kg |
|
Platform Extend Length |
0.9 m |
0.9 m |
0.9 m |
0.9 m |
0.9 m |
0.9 m |
0.9 m |
|
Extend Platform Capacity |
113 kg |
110 kg |
113 kg |
113 kg |
113 kg |
113 kg |
110 kg |
|
Max Working Height |
8 m |
8 m |
10 m |
10 m |
12 m |
13.8 m |
15.8 m |
|
Max Platform Height (A) |
6 m |
6 m |
8 m |
8 m |
10 m |
11.8 m |
13.8 m |
|
Overall Length (F) |
2430 mm |
1850 mm |
2430 mm |
2430 mm |
2430 mm |
2430 mm |
2850 mm |
|
Overall Width (G) |
1210 mm |
790 mm |
1210 mm |
890 mm |
1210 mm |
1210 mm |
1310 mm |
|
Overall Height (Guardrail Not Folded) (E) |
2220 mm |
2220 mm |
2350 mm |
2350 mm |
2470 mm |
2600 mm |
2620 mm |
|
Overall Height (Guardrail Folded) (B) |
1670 mm |
1680 mm |
1800 mm |
1800 mm |
1930 mm |
2060 mm |
2060 mm |
|
Platform Size (C*D) |
2270*1120 mm |
1680*740 mm |
2270*1120 mm |
2270*860 mm |
2270*1120 mm |
2270*1120 mm |
2700*1110 mm |
|
Minimum Ground Clearance (Lowered) (I) |
0.1 m |
0.1 m |
0.1 m |
0.1 m |
0.1 m |
0.1 m |
0.1 m |
|
Minimum Ground Clearance (Raised) (J) |
0.019 m |
0.019 m |
0.019 m |
0.019 m |
0.019 m |
0.015 m |
0.015 m |
|
Wheel Base (H) |
1.87 m |
1.39 m |
1.87 m |
1.87 m |
1.87 m |
1.87 m |
2.28 m |
|
Turning Radius (In/Out Wheel) |
0/2.4 m |
0.3/1.75 m |
0/2.4 m |
0/2.4 m |
0/2.4 m |
0/2.4 m |
0/2.4 m |
|
Lift/Drive Motor |
24V/4.5 kW |
24V/3.3 kW |
24V/4.5 kW |
24V/4.5 kW |
24V/4.5 kW |
24V/4.5 kW |
24V/4.5 kW |
|
Drive Speed (Lowered) |
3.5 km/h |
3.8 km/h |
3.5 km/h |
3.5 km/h |
3.5 km/h |
3.5 km/h |
3.5 km/h |
|
Drive Speed (Raised) |
0.8 km/h |
0.8 km/h |
0.8 km/h |
0.8 km/h |
0.8 km/h |
0.8 km/h |
0.8 km/h |
|
Up/Down Speed |
100/80 sec |
100/80 sec |
100/80 sec |
100/80 sec |
100/80 sec |
100/80 sec |
100/80 sec |
|
Battery |
4*6V/200Ah |
4*6V/200Ah |
4*6V/200Ah |
4*6V/200Ah |
4*6V/200Ah |
4*6V/200Ah |
4*6V/200Ah |
|
Recharger |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
|
Maximum Gradeability |
25% |
25% |
25% |
25% |
25% |
25% |
25% |
|
Maximum Permissible Working Angle |
X1.5°/Y3° |
X1.5°/Y3° |
X1.5°/Y3° |
X1.5°/Y3° |
X1.5°/Y3° |
X1.5°/Y3° |
X1.5°/Y3° |
|
Tyre |
φ381*127 |
φ305*114 |
φ381*127 |
φ381*127 |
φ381*127 |
φ381*127 |
φ381*127 |
|
Self-Weight |
2250 kg |
1430 kg |
2350 kg |
2260 kg |
2550 kg |
2980 kg |
3670 kg |
Premium Configurations
|
Component |
Specification/Brand |
|
Structural Material |
Q355/Q345 manganese steel, 5 mm standard thickness |
|
Hydraulic System |
Bucher motor pump (Switzerland) + Hydraforce main valve |
|
Control System |
DTC control system (USA) + Curtis driver |
|
Safety Devices |
12 safety systems including automatic braking, emergency descent, and tilt protection |
|
Battery |
Quick Lion/Tianneng maintenance-free battery (2-year warranty) |
|
Surface Treatment |
Full electrophoretic coating + shot blasting rust removal |
Main Parts of Scissor Man Lift

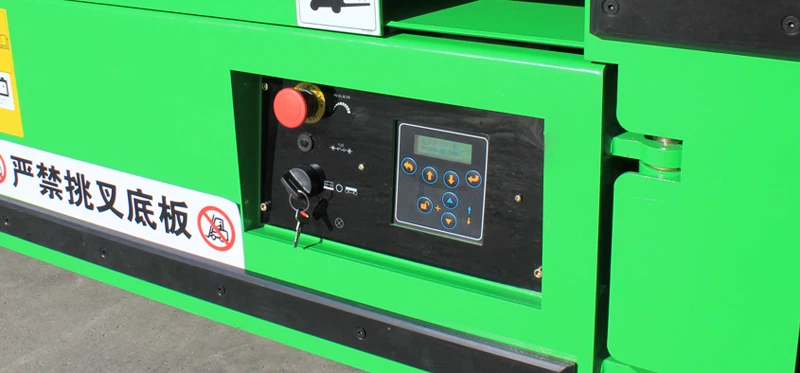

Bottom Control Panel
DAXLIFTER has designed an advanced virtual control system to replace the old-fashioned button control. A new anti-misoperation switch is added to the control panel to avoid misoperation as much as possible.
Extend Platform
DAXLIFTER has designed a large load extension platform to increase the lateral working range.

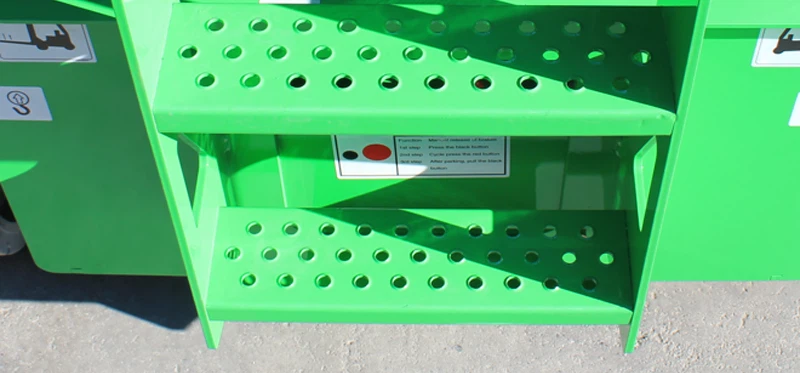

Anti-Slip Ladder
Anti-slip ladders can prevent workers from getting in danger when going up and down the platform due to slippery surfaces.

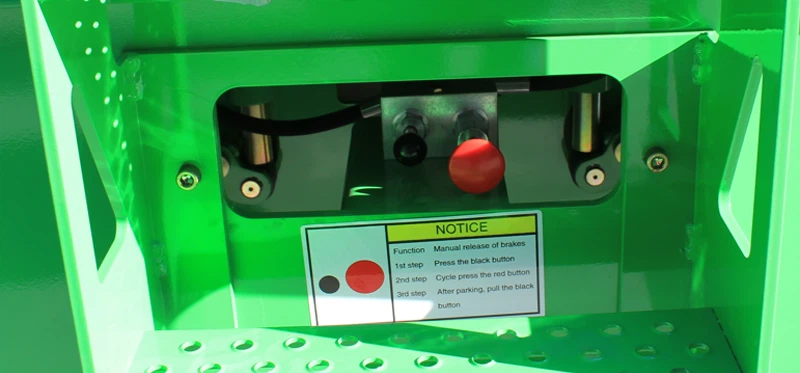

Manual release wheel brakes
DAXLIFTER has designed a manual brake release switch to facilitate the movement of the scissor lift when there is no power.

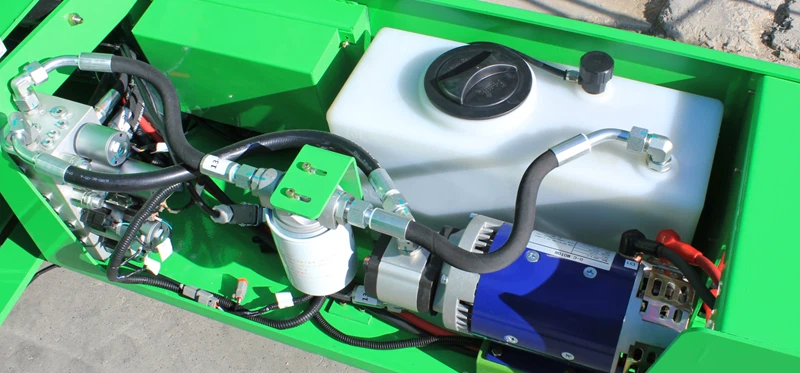

Hydraulic System
This scissor lift from DAXLIFTER uses a full hydraulic system and our system layout is very neat and clean.

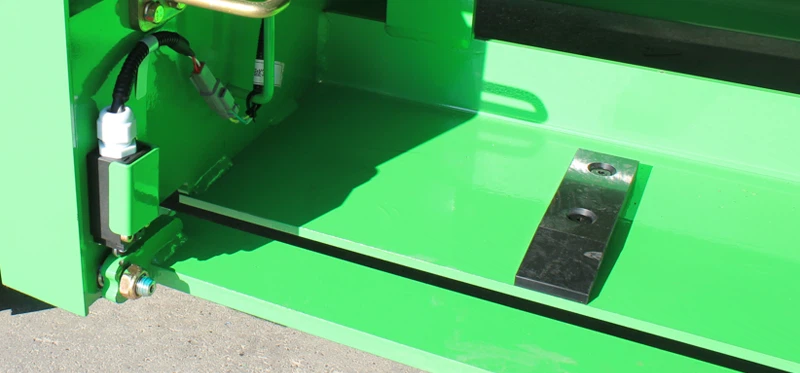

Bottom obstacle detection function
The bottom obstacle detection function can ensure that the equipment is not affected by foreign objects at the bottom during the lifting process.

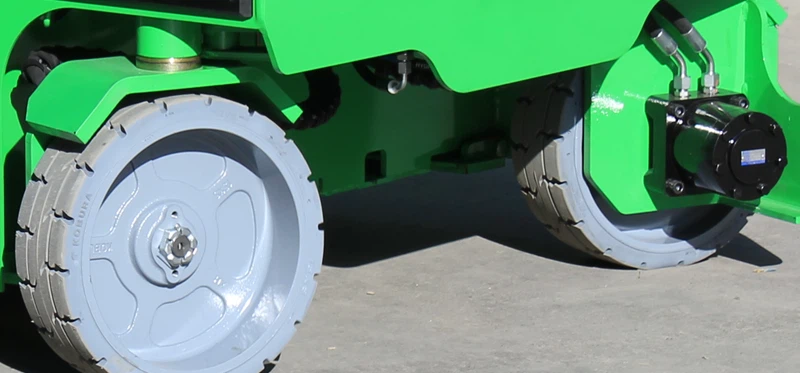

High Quality Wheel and Drive motor
DAXLIFTER uses strong and wear-resistant tires and uses Rexroth drive motors.
