Qingdao DAXLIFTER Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of crawler scissor lift with outrigger in China. With abundant experience, we warmly welcome you to buy advanced crawler scissor lift with outrigger for sale here from our factory. Quality products and reasonable price are available.

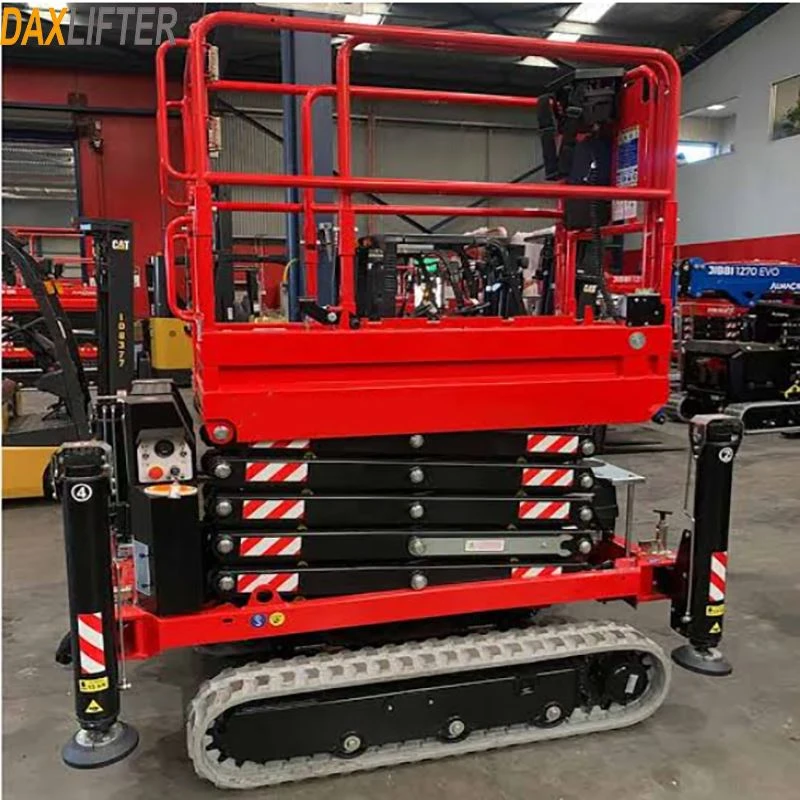

DAXLIFTER DXLDS series tracked scissor lift is a rough terrain self-propelled aerial work platform available in 4 models: DXLDS06, DXLDS08, DXLDS10 and DXLDS12. DXLDS06 delivers a 6m max platform height and 8m max working height, DXLDS08 reaches 8m platform height / 10m working height, DXLDS10 has 9.75m platform height and 12m working height, while DXLDS12 supports up to 11.75m platform height and 14m max working height. All models share a 2270×1120mm main platform size with a 900mm extended platform, the extended platform load is 113kg for all units. DXLDS06 and DXLDS08 have a 450kg load capacity; DXLDS10 and DXLDS12 support 320kg capacity. Overall dimension varies: DXLDS06 2782*1581*2280mm (2800kg weight), DXLDS08 2782*1581*2400mm (2950kg), DXLDS10 2782*1581*2530mm (3240kg), DXLDS12 2782*1581*2670mm (3480kg).
This crawler scissor lift adopts rubber crawler chassis and hydraulic outriggers, which can stably travel and operate on uneven ground, muddy construction sites, sloped and rough terrain. Unlike wheeled scissor lifts, tracked aerial work platforms have better ground adaptability and lower ground pressure, protecting lawn and fragile ground surface. The full electric hydraulic control system offers smooth lifting and moving, equipped with safety guardrails, emergency stop function and overload protection to ensure operator safety during high-altitude maintenance, installation, cleaning and construction work.
Main Features
- Rubber crawler traveling system, suitable for rough, muddy, uneven site conditions
- Hydraulic support outriggers for stable leveling on sloped ground
- Telescopic extending platform for extended working range
- Safe guardrail on working platform, emergency lowering & stop device
- Self-propelled design, one-person operation on platform
- Compact overall size, easy transport and site transfer
Technical Specification Table
| Model | DXLDS 06 | DXLDS 08 | DXLDS 10 | DXLDS 12 |
| Max platform height | 6m | 8m | 9.75m | 11.75m |
| Max working height | 8m | 10m | 12m | 14m |
| Platform size | 2270X1120mm | 2270X1120mm | 2270X1120mm | 2270X1120mm |
| Extended platform size | 900mm | 900mm | 900mm | 900mm |
| Capacity | 450kg | 450kg | 320kg | 320kg |
| Extended platform load | 113kg | 113kg | 113kg | 113kg |
| Product size (length*width*height) | 2782*1581*2280mm | 2782*1581*2400mm | 2782*1581*2530mm | 2782*1581*2670mm |
| Weight | 2800Kg | 2950kg | 3240kg | 3480kg |
Application Scenarios
Our tracked rough terrain scissor lift is widely used for outdoor building maintenance, factory installation, greenhouse maintenance, stadium construction, road engineering, tree trimming, rooftop construction and other outdoor high-altitude operations. It works well on grass, sand, mud and uneven construction ground where ordinary wheeled aerial platforms cannot access.
