Qingdao DAXLIFTER Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of compact indoor aerial work platform in China. With abundant experience, we warmly welcome you to buy advanced compact indoor aerial work platform for sale here from our factory. Quality products and reasonable price are available.

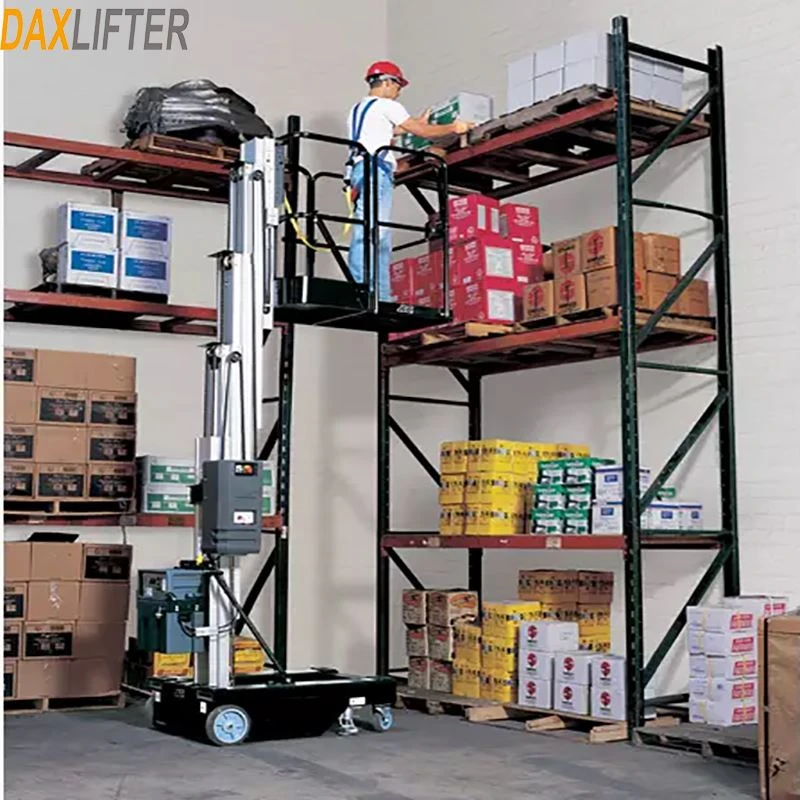

DAXLIFTER SAWP6 SAWP7.5 Self Propelled Single Mast Aerial Work Platform
DAXLIFTER SAWP6 & SAWP7.5 self-propelled single mast aluminum aerial work platforms deliver compact vertical access solutions for one operator, with SAWP6 reaching 8.00m max working height, 6.00m platform height and 150kg loading capacity while SAWP7.5 offers 9.50m max working height,7.50m platform height and 125kg loading capacity. Both models accommodate 1 occupant, feature 1.40m overall length,0.82m overall width,1.98m overall height,0.78m×0.70m platform dimension,1.14m wheel base and 0 turning radius, which enables flexible operation inside narrow warehouses, hotels, shopping malls and office buildings across EU, UK, Australia, Southeast Asia, Middle East and North America.
This electric vertical mast man lift runs at 4km/h travel speed when stowed and 1.1km/h travel speed when raised. The up/down speed is 43/35sec for SAWP6 and 48/40sec for SAWP7.5. It comes with 25% gradeability, Φ230×80mm drive tyres, dual 2×12VDC/0.4kW drive motors, a 24VDC/2.2kW lifting motor, 2×12V/85Ah battery and 24V/11A charger. The unit weight is 954kg for SAWP6 and 1190kg for SAWP7.5.
Built with premium aluminum mast structure, this self-driving aerial lift requires no outriggers. Zero turning radius design lets it rotate freely in tight indoor aisles. Proportional electric control ensures smooth lifting and travelling. Widely used for ceiling installation, light fixture replacement, painting, factory equipment maintenance, airport terminal and retail store servicing. CE compliant, low noise emission and non-marking tires protect indoor floor surfaces.
Product Specification
| Item | SAWP6 | SAWP7.5 |
|---|---|---|
| Max. Working Height | 8.00m | 9.50m |
| Max. Platform Height | 6.00m | 7.50m |
| Loading Capacity | 150kg | 125kg |
| Occupants | 1 | 1 |
| Overall Length | 1.40m | 1.40m |
| Overall Width | 0.82m | 0.82m |
| Overall Height | 1.98m | 1.98m |
| Platform Dimension | 0.78m×0.70m | 0.78m×0.70m |
| Wheel Base | 1.14m | 1.14m |
| Turning Radius | 0 | 0 |
| Travel Speed(Stowed) | 4km/h | 4km/h |
| Travel Speed(Raised) | 1.1km/h | 1.1km/h |
| Up/Down Speed | 43/35sec | 48/40sec |
| Gradeability | 25% | 25% |
| Drive Tyres | Φ230×80mm | Φ230×80mm |
| Drive Motors | 2×12VDC/0.4kW | 2×12VDC/0.4kW |
| Lifting Motor | 24VDC/2.2kW | 24VDC/2.2kW |
| Battery | 2×12V/85Ah | 2×12V/85Ah |
| Charger | 24V/11A | 24V/11A |
| Weight | 954kg | 1190kg |
Core Advantages
- Zero turning radius, free rotation in narrow indoor space
- Self-propelled walking, one-person operation without auxiliary labor
- Light aluminum mast, stable lifting performance
- Non-marking rubber tires, no damage to floor
- Low noise electric power system, suitable for hotel, supermarket, office
- Simple control panel, easy training for operators
Application Scenarios
Indoor building maintenance, hotel & mall decoration, warehouse rack inspection, lighting & electrical installation, exhibition hall setup, airport & station facility repair, factory workshop servicing.
