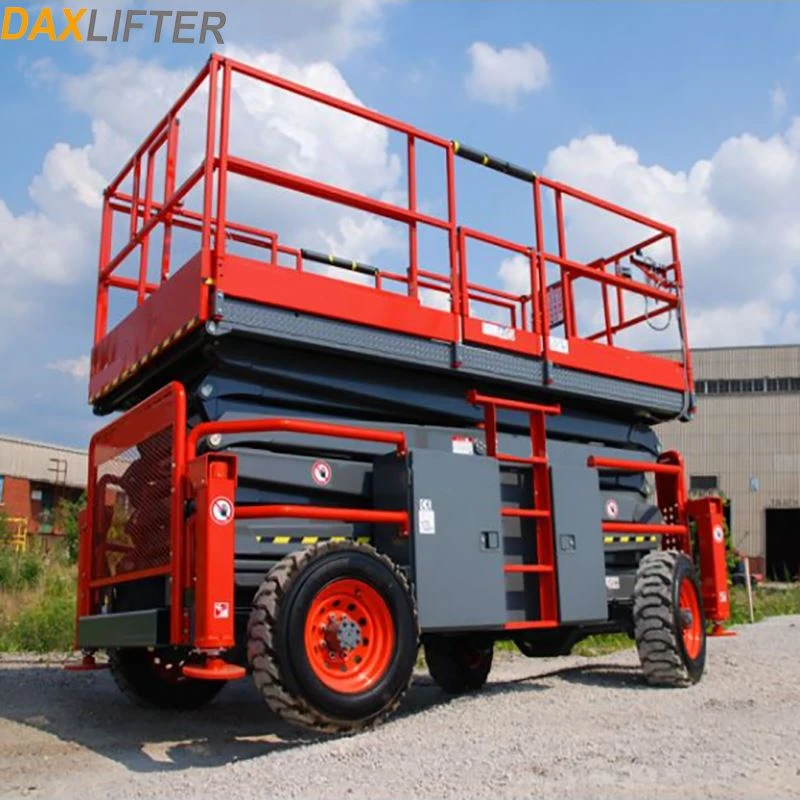

DXRT-12 Rough Terrain Scissor Lift - DAXLIFTER Self Propelled Offroad Aerial Work Platform

DAXLIFTER DXRT-12 self-propelled rough terrain scissor lift features a 500kg loading capacity for up to 2 workers, with 14m maximum work height and 12m maximum platform height. This offroad aerial work platform measures 2900mm in total length and 2200mm in total width; its total height reaches 2970mm with open fence and 2200mm when the fence is folded. The platform dimension is 2700mm*1170mm, equipped with 0.3m minimum ground clearance and 2.4m wheelbase. The inner minimum turning radius is 2.8m while the outer minimum turning radius is 3m. It runs at 0-30m/min in folded status and 0-10m/min with open fence, with rise/down speed of 80/90 sec. Powered by 8*48V/4.5KW maintenance-free battery, the machine supports 25% maximum gradeability, fitted with 27*8.5-15 tyres and total machine weight of 3800kg.

Main Technical Parameters

Item	DXRT-12 Specification
Model	DXRT-12
Capacity	500kg
Max worker number	2
Max work height	14m
Max platform height	12m
Total length	2900mm
Total width	2200mm
Total height(open fence)	2970mm
Total height(fold fence)	2200mm
Platform size(length*width)	2700mm*1170mm
Min ground clearance	0.3m
Wheelbase	2.4m
Min turning radius (Inner wheel)	2.8m
Min turning radius (Outer wheel)	3m
Running speed(Fold)	0-30m/min
Running speed(Open)	0-10m/min
Rise/down speed	80/90 sec
Power Supply	8*48V/4.5KW Maintenance-free battery
Maximum gradeability	25%
Tyres	27*8.5-15
Weight	3800kg

Product Advantages

Self-propelled design, flexible moving on construction and outdoor uneven sites
Heavy-duty offroad tyres and high ground clearance for rough terrain operation
Maintenance-free battery power, low noise and environmental friendly
Collapsible safety guardrail for convenient transport and container loading
Multiple safety protection system including overload, tilt and emergency lowering

Application Scenarios

Outdoor building maintenance, construction engineering, factory equipment installation, warehouse aerial operation, stadium and stage setup, solar panel installation, rental fleets and aerial working contracting projects.

DAXLIFTER Service

We supply OEM & ODM service, spare parts, technical guidance and global after-sales support for rough terrain scissor lifts. Welcome worldwide importers, rental companies and engineering contractors for inquiry and cooperation.
