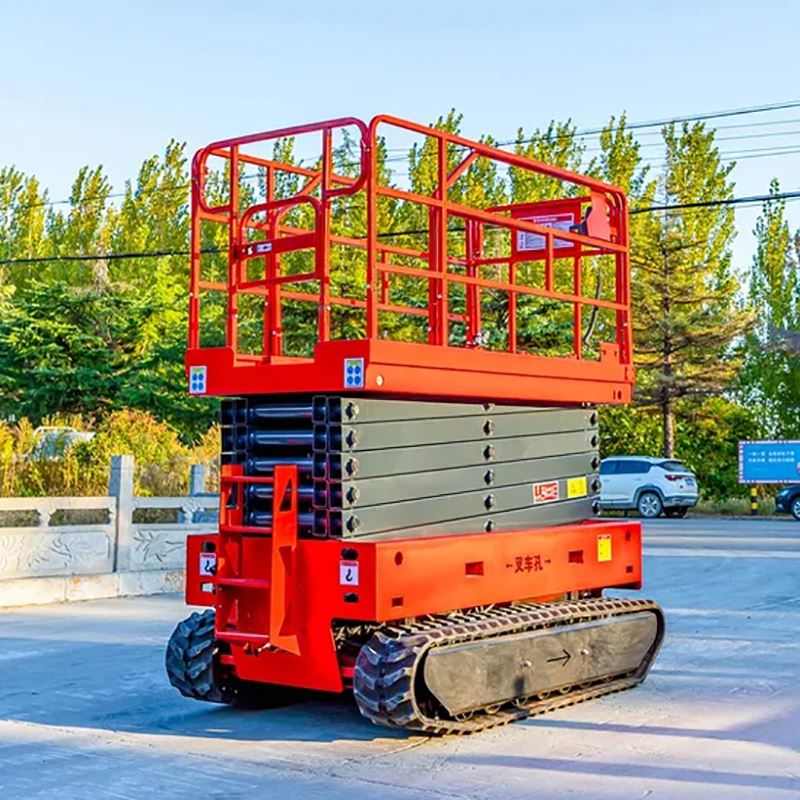

DAXLIFTER Self Propelled Crawler Scissor Lift DXLDS6-DXLDS14
DAXLIFTER self-propelled crawler scissor lift includes DXLDS6, DXLDS8, DXLDS10, DXLDS12, DXLDS14 models. The max platform height ranges from 6m, 8m, 10m, 12m to 14m, corresponding max working height is 8m, 10m, 12m, 14m, 16m. The rated load capacity is 320kg, main platform dimension 2400*1170mm, extendable platform length 900mm with 115kg extension load capacity. Travel speed reaches 0.8km/min, lifting speed 0.25m/s, equipped with rubber crawler tracks and 6v*8*200ah battery pack, charging time 6-7 hours. This tracked aerial work platform is built for rough, muddy and uneven outdoor job sites, widely used for facade installation, building maintenance, garden trimming and off-road elevated working tasks.
This battery-powered tracked scissor lift adopts full self-propelled design, operators can complete moving and lifting operations directly on the guardrail platform without external towing. Overall dimensions without guard rail vary by model: 3000*1750*1700mm (DXLDS6), 3000*1750*1820mm (DXLDS8), 3000*1750*1940mm (DXLDS10), 3000*1750*2050mm (DXLDS12), 3000*1750*2250mm (DXLDS14). Unit weight is 2400kg, 2800kg, 3000kg, 3200kg, 3700kg respectively. The rubber crawler design reduces ground pressure, delivering superior passing performance on grass, mud and gravel terrain compared with wheel-type scissor lifts.
Technical Specification
| Model | DXLDS6 | DXLDS8 | DXLDS10 | DXLDS12 | DXLDS14 |
|---|---|---|---|---|---|
| Max Platform Height | 6m | 8m | 10m | 12m | 14m |
| Max Working Height | 8m | 10m | 12m | 14m | 16m |
| Capacity | 320kg | 320kg | 320kg | 320kg | 320kg |
| Platform Size | 2400*1170mm | 2400*1170mm | 2400*1170mm | 2400*1170mm | 2400*1170mm |
| Extend Platform Size | 900mm | 900mm | 900mm | 900mm | 900mm |
| Extend Platform Capacity | 115kg | 115kg | 115kg | 115kg | 115kg |
| Overall Size (Without guard rail) | 3000*1750*1700mm | 3000*1750*1820mm | 3000*1750*1940mm | 3000*1750*2050mm | 3000*1750*2250mm |
| Weight | 2400kg | 2800kg | 3000kg | 3200kg | 3700kg |
| Drive Speed | 0.8km/min | 0.8km/min | 0.8km/min | 0.8km/min | 0.8km/min |
| Lifting Speed | 0.25m/s | 0.25m/s | 0.25m/s | 0.25m/s | 0.25m/s |
| Material of Track | Rubber | Rubber | Rubber | Rubber | Rubber |
| Battery | 6v*8*200ah | 6v*8*200ah | 6v*8*200ah | 6v*8*200ah | 6v*8*200ah |
| Charge Time | 6-7h | 6-7h | 6-7h | 6-7h | 6-7h |
Core Advantages
- Rubber crawler rough terrain chassis, excellent trafficability on muddy and uneven construction sites
- Full electric hydraulic drive, low noise and eco-friendly, stable battery performance with 6-7 hours charging cycle
- Telescopic extend platform to enlarge working range, extension load capacity up to 115kg
- Complete safety protection system with overload lock and emergency lowering device
- Multiple working height options from 8m to 16m to satisfy most outdoor aerial working projects
- DAXLIFTER original factory production, export certification available for global rental and construction clients
