Buying a Boom Lift: Don't Only Focus On Working Height

The core difference between an articulated boom lift and a telescopic boom lift lies in how they perform work. Articulated boom lifts excel at manoeuvring around obstacles, while telescopic boom lifts are built to reach target work‑points in a direct long‑range path. Choosing the wrong model will leave you restricted on‑site, even after repeatedly repositioning the machine.

Articulated or telescopic boom lift - look beyond height and evaluate real‑world site conditions first. Many customers reach out for boom lifts and open the conversation by asking: "Do you have 20‑metre or 30‑metre boom lifts in stock?"

It makes perfect sense, as working height is naturally buyers' primary concern when sourcing aerial work equipment. However, most real‑world job‑site frustrations are not caused by a minor height shortfall. Instead, they stem from the platform simply being unable to physically reach the required work location. Common challenging scenarios include: under‑bridge inspections where the unit must park off to the side; building facades cluttered with balconies, overhangs and steel structural elements that block straight‑line extension; industrial plant zones with restricted access forcing the boom to reach out from a safe stand‑off distance; or fully open sites requiring only a fast vertical lift to overhead work positions.

Different job‑site conditions call for distinctly different boom lift models. Selecting between articulated and telescopic boom lifts is not about product grade or purchase cost. The key distinction is their mechanical approach to reaching work‑points.

Here is a simple practical selection rule: If obstructions exist and the platform must manoeuvre around or over barriers to access work‑spots, go with an articulated boom lift. For open, flat job‑sites where you only need direct boom extension from the parked position toward overhead or distant work surfaces, choose a telescopic boom lift.

In short: Articulated boom lifts are for "going around obstacles"; telescopic boom lifts are for "straight‑out reaching". This simple principle delivers huge practical value during equipment selection.

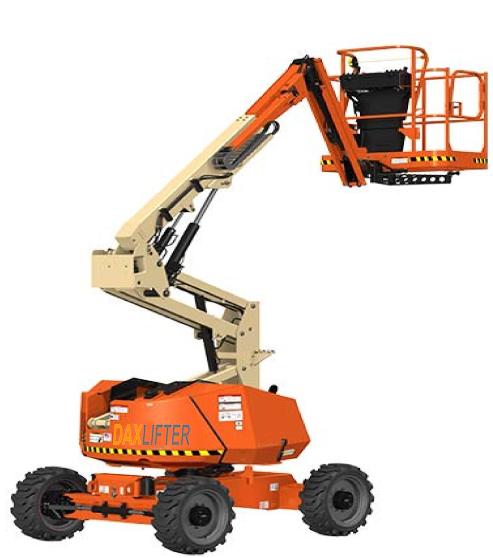

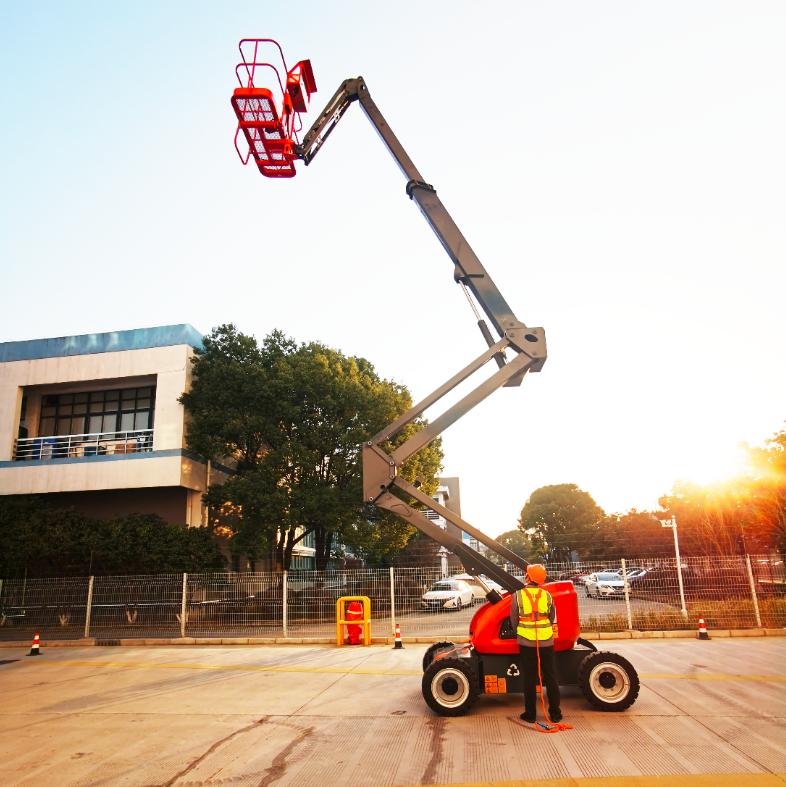

Articulated Boom Lift: Core Strength In Obstacle Clearing

Also known as knuckle boom lift, the articulated boom lift features multiple hinged boom segments. Its standout capability: raise the boom over front‑side obstructions, then adjust platform angles for precise positioning at hard‑to‑reach work‑points.

Typical application scenarios:

• Bridge inspection & maintenance: Machines cannot park directly beneath bridge work zones. The unit parks alongside the structure; jointed booms swing over guardrails and bridge components to access undersides of bridge beams - a task perfectly matched to articulated boom geometry.
• Complex‑geometry building facade work: Facades with projecting balconies, cornices and decorative elements frequently block straight‑line boom travel. Multi‑angle knuckle adjustment lets you position the platform with greater flexibility.
• Steel‑structure plant maintenance: Dense layout of steel girders, pipe racks and equipment platforms blocks simple straight extension. Articulated booms achieve multi‑angle positioning from one stationary parking spot without frequent machine re‑location.
• Municipal road maintenance: Street‑light, sign and cable‑tray repairs often have limited parking space occupied by guardrails and landscaping. Articulated boom lifts compensate for constrained vehicle‑parking zones.

Diesel‑powered articulated boom lifts cover working heights from 16 m up to 40 m, with standard platform safe working load of 230 kg. Most units come with 4‑wheel drive, certain models offer full 360‑degree continuous slewing, and gradeability reaches 40%‑45%. For urban enclosed sites, low‑emission zones or indoor assignments, electric articulated boom lift variants are available.

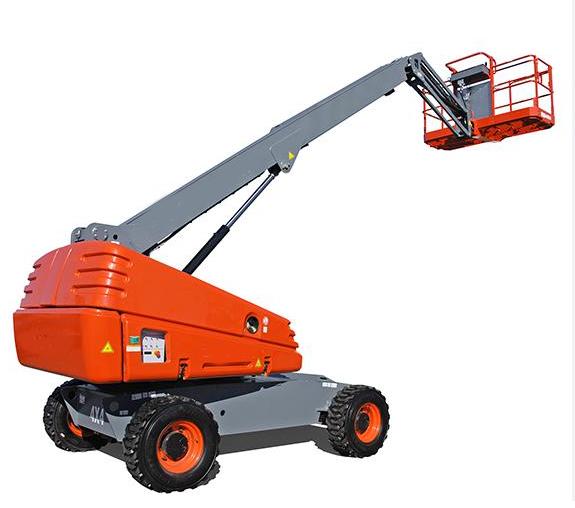

Telescopic Boom Lift: Efficient Direct Reaching For Open Sites

Also referred to as straight boom lift. Once the machine is securely parked, the multi‑section telescopic boom extends linearly upwards and outwards to reach target work‑surfaces.

Telescopic boom lifts deliver superior productivity on unobstructed job‑sites. They shine for applications requiring extreme working heights, long horizontal outreach, or situations where multiple personnel plus hand‑tools and materials must ride on the work platform.

Common use‑cases:

• High‑rise building facade projects: Glass curtain‑wall installation, exterior painting and facade inspection. Where ample parking room exists, telescopic booms travel directly toward work‑areas with simple, predictable movement paths.
• Petrochemical plant maintenance: Storage tanks, tall process towers, heat exchangers and pipe racks often prohibit close‑range vehicle access. Long horizontal outreach from a safe stand‑off position makes telescopic boom lifts ideal for these plant‑site tasks.
• Wind‑energy, power‑utility and telecommunication infrastructure servicing: These projects regularly demand high working heights plus long‑distance horizontal access; telescopic units perform best given open‑air site conditions.
• Aircraft hangar inspection & servicing: Strict requirements apply for machine stability and platform load capacity. Heavy‑duty telescopic boom lifts carry crews with complete tool sets for aircraft‑frame and wing‑component maintenance.

Key Site Details To Confirm Before Boom Lift Procurement

• Maximum required working height
• Required horizontal outreach distance
• Obstacles or barriers situated in front of target work‑locations
• Whether the machine can park directly underneath work‑points
• Ground‑surface condition: paved concrete, gravel or raw un‑levelled construction ground
• Presence of ramps or slopes plus estimated gradient percentage
• Number of operators working simultaneously, plus tool and material payload requirements for the platform
• Emission requirements: select between diesel‑powered boom lift or electric boom lift
• Export documentation needs: CE certificates, operation manuals, packing lists and other compliance paperwork

These seemingly minor details are critical for correct equipment selection. Many purchasing mistakes happen because buyers only discuss working height and ignore real‑world constraints such as parking positions, boom angles and site obstructions.

Articulated VS Telescopic Boom Lift Quick Reference

Choose articulated boom lift when obstacle‑clearing and multi‑angle flexible positioning are required. Working‑height range: 16‑40 m, typical platform load 230 kg, 4‑wheel‑drive configuration, optional Kubota / Cummins engines, 40%‑45% gradeability. Suitable for bridge maintenance, steel‑structure construction, irregular facade projects and plant‑floor equipment inspection.

Choose telescopic boom lift for open‑air sites requiring great working height and long horizontal outreach. Working‑height range: 16.7‑48 m, platform load capacity 230‑480 kg as standard, 4‑wheel‑drive fitted, heavy‑duty versions support four‑wheel steering. Well‑suited for high‑rise facade work, petrochemical‑plant operations, power‑utility infrastructure and aircraft‑hangar maintenance.

An articulated boom lift is NOT simply a low‑spec short telescopic unit, nor is a telescopic boom lift an extended‑length articulated model. Articulated boom lifts solve the core problem: how to navigate around obstructions to reach work‑spots. Telescopic boom lifts focus on: how to achieve direct long‑distance high‑elevation access.

If you evaluate equipment purely by maximum working height, you risk oversimplifying site requirements. Obstacles on‑site, available parking locations and achievable boom angles are where most costly selection errors occur. If you are uncertain which boom lift fits your job‑site, share on‑site photos, required working height, horizontal outreach, ground‑surface conditions and payload needs. Our team can propose well‑matched equipment recommendations for your project.
